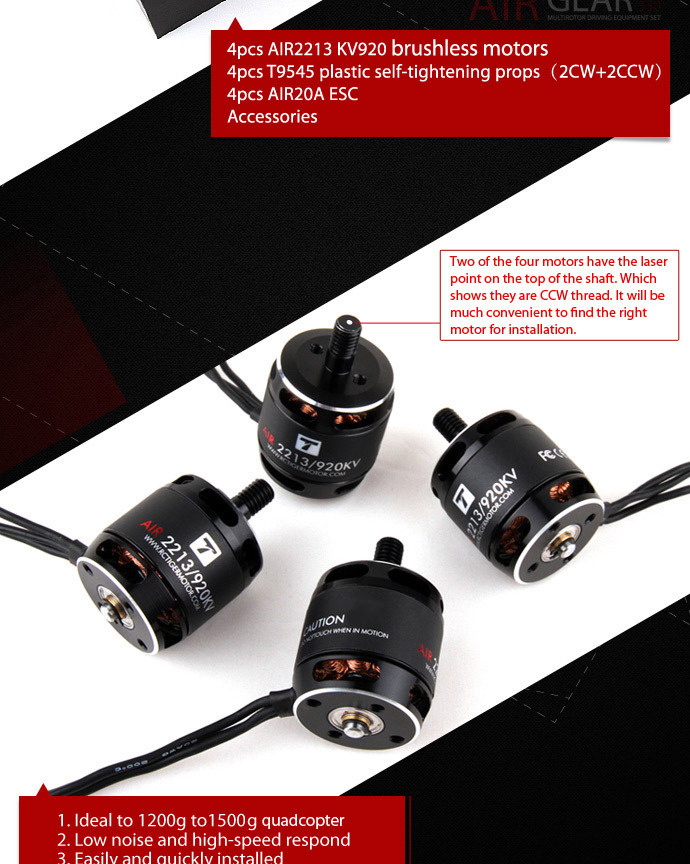

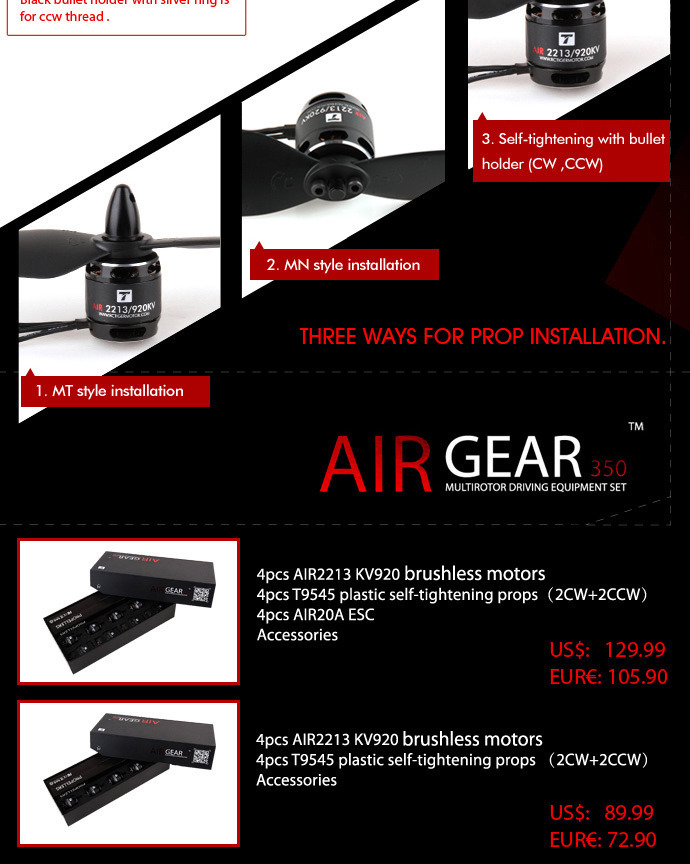

DIY 멀티콥터 모터, ESC, 프로펠러 추천 세트
재미좀보자
2016. 2. 14. 22:30
요약본

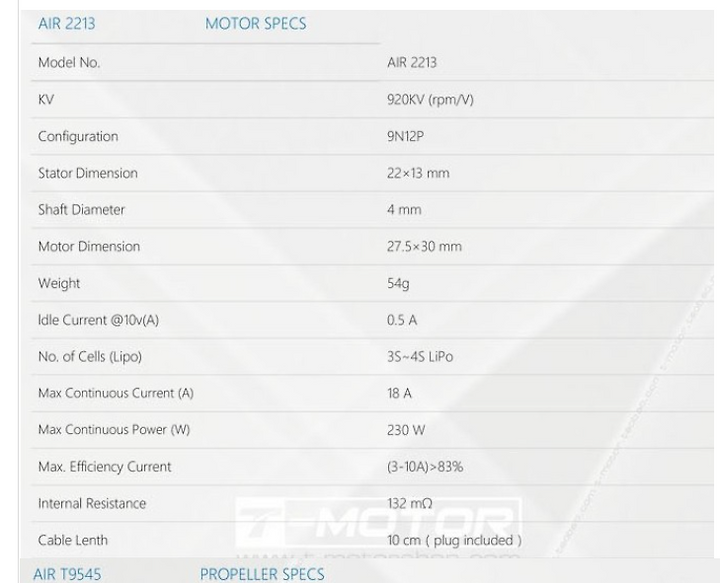

Specifications:
KV............................................................................................................920
Configuration..........................................................................................9N12P
Stator Diameter......................................................................................22mm
Stator Length..........................................................................................13mm
Shaft Diameter..........................................................................................4mm
Motor Dimensions(Dia.*Len).........................................................Φ27.5×30mm
Weight (g).................................................................................................54g
ldle current(10)@10v(A).............................................................................0.5A
No.of Cells(Lipo).......................................................................................3-4S
Max Continuous current(A)180S..................................................................18A
Max Continuous Power(W)180S...............................................................230W
Max. efficiency current..................................................................(3-10A)>83%
internal resistance.................................................................................132mΩ

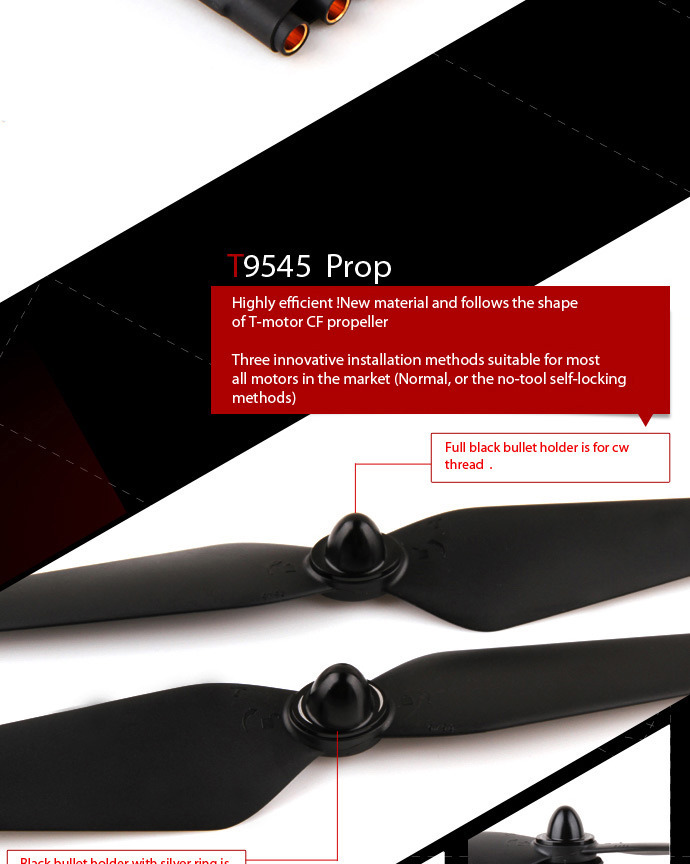

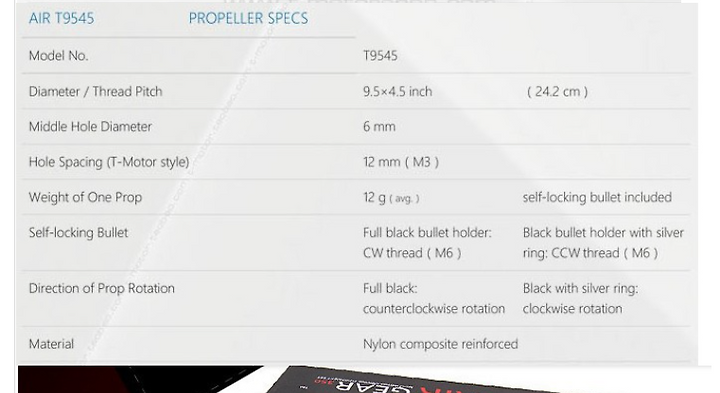

Propellers
- length: 9.5inch
- pitch 4.3 inch
상세

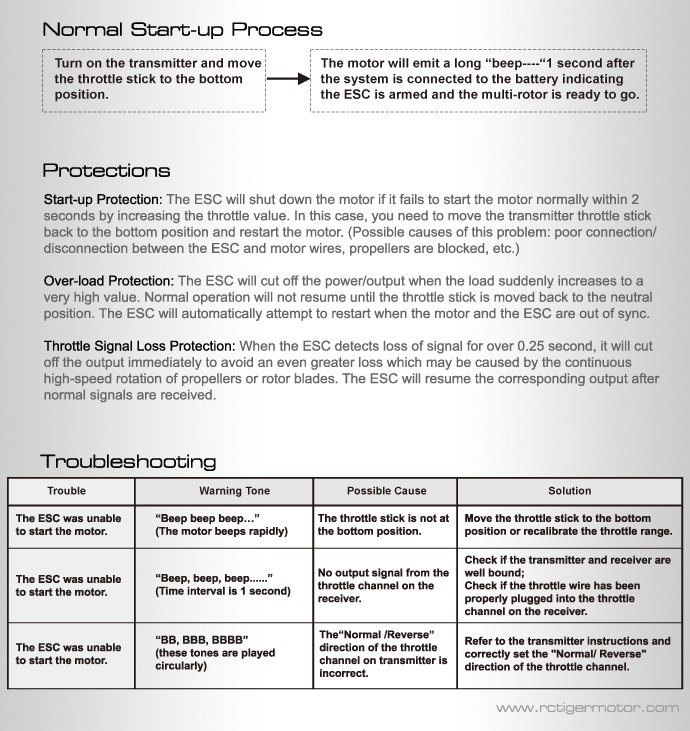

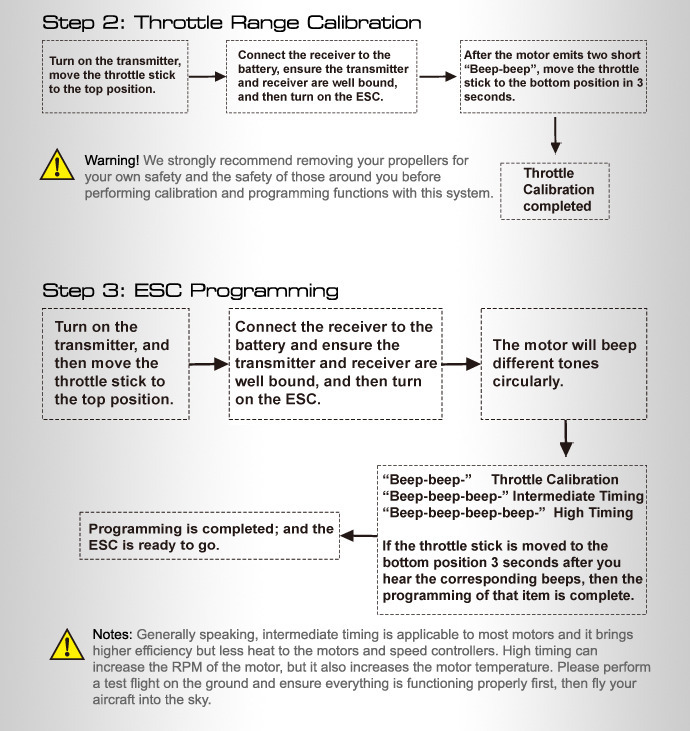

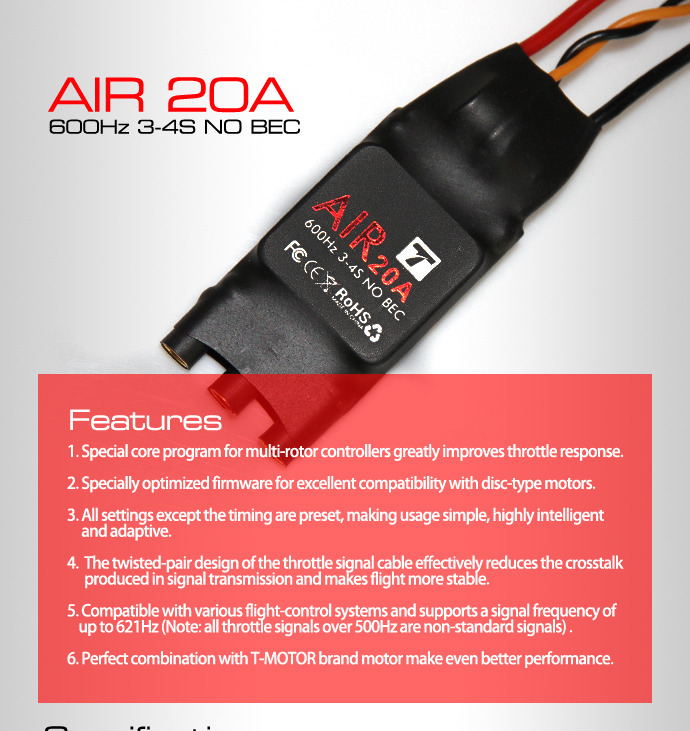

변속기
참고 및 출처: http://www.rctigermotor.com/
